HSK 63 F collet chuck HM saw blade 105 x 2.8 x 22

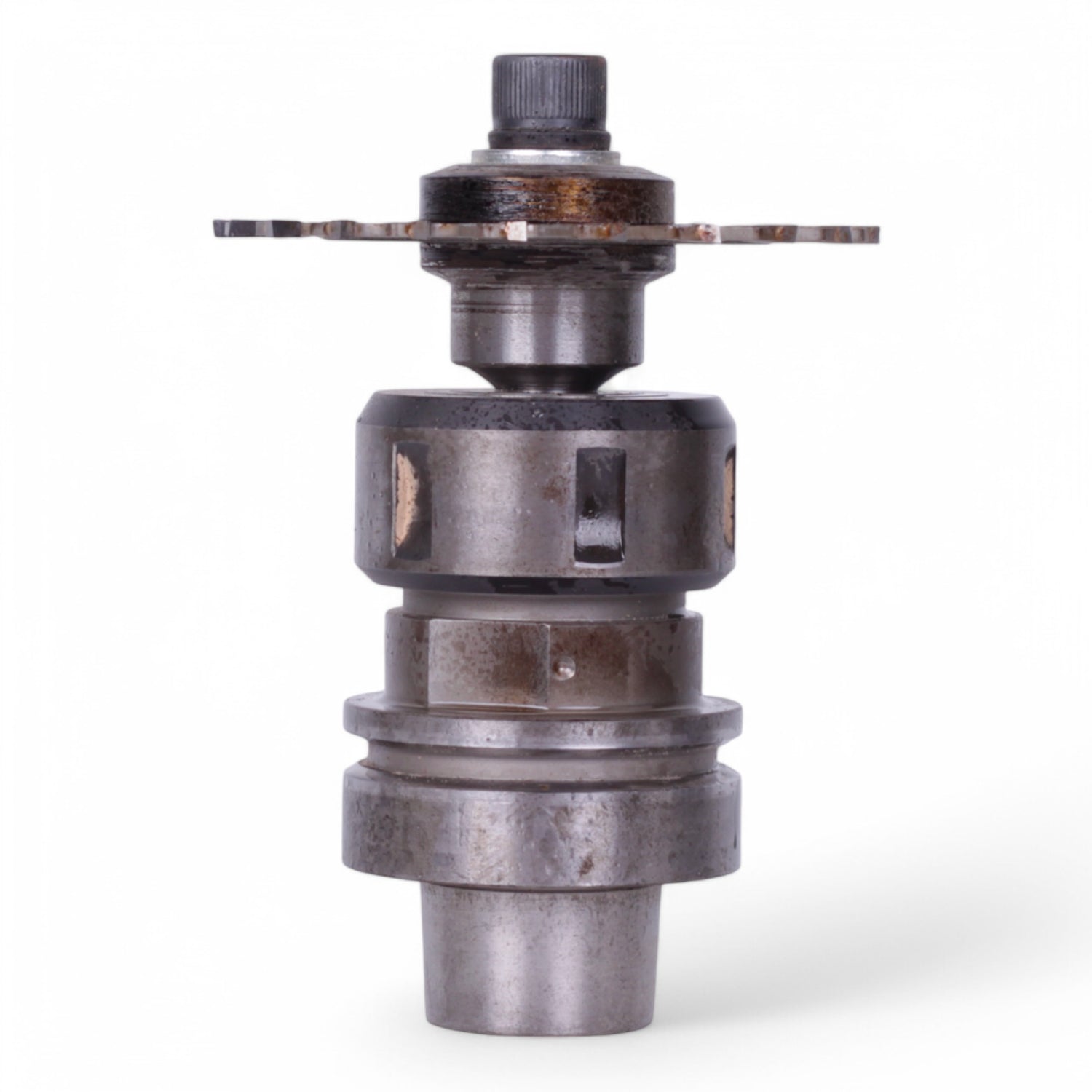

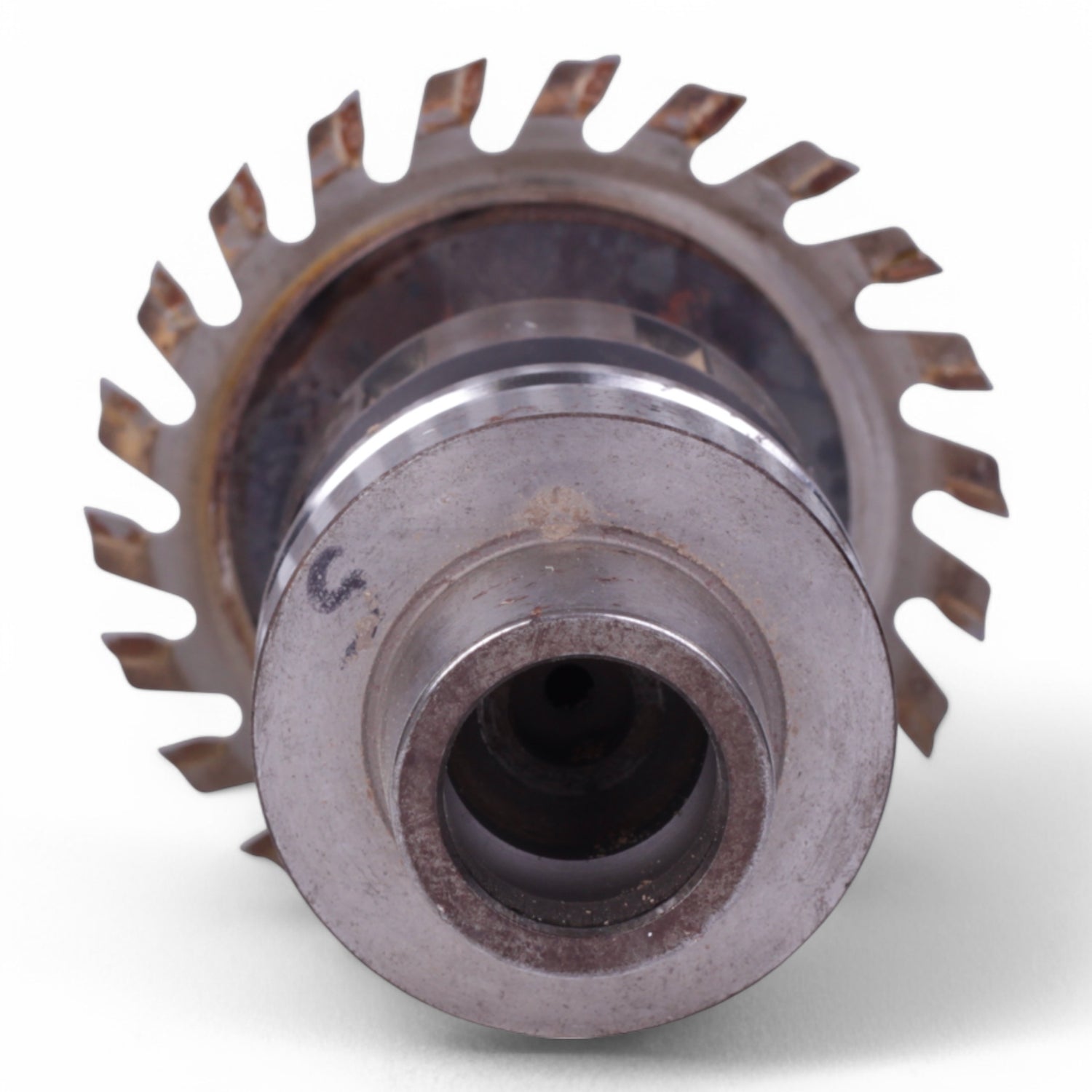

HSK 63 F Collet Chuck with Saw Blade 105 x 2.8 x 22

Product description: The HSK 63 F Collet Chuck with Saw Blade 105 x 2.8 x 22 was manufactured according to DIN 69893 and is specially designed for precise cutting and separating work in CNC routers and machining centers (BAZ). It allows for clamping of shank tools with cylindrical shanks and is compatible with collets of type 462 E / OZ 25 up to 25 mm.

Please note: This collet chuck is used and may show signs of wear, but these do not affect its function.

Technical data:

• Type: HSK 63 F

• A (mm): 76

• D (mm): 60

• D1 (mm): 63

• D2 (mm): 38

• I (mm): 18

• Maximum speed: 24,000 rpm

• Clamping range (mm): 2 - 25

• Suitable for: HSK 63 F - fixed / HSK 63 F - swivel

• Material: High-quality steel

• Usage: CNC routers, machining centers (BAZ)

• Application range: Suitable for clockwise and counter-clockwise rotation

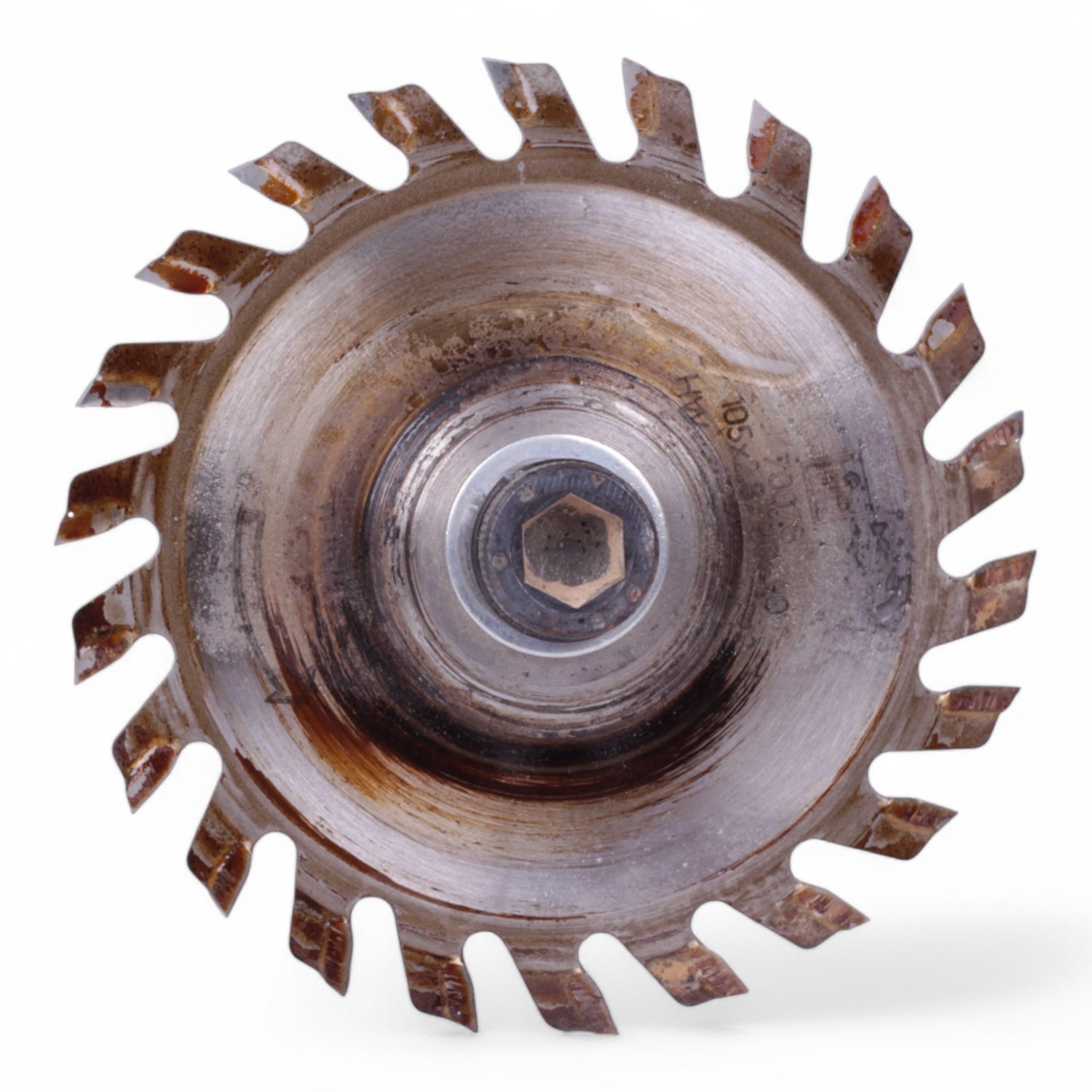

With saw blade:

• Diameter: approx. 105 mm

• Width: approx. 2.8 mm

• Teeth: 22

• Carbide-tipped

• Collet included

Special features:

• Finely balanced for speeds up to 24,000 rpm

• Precise collet chuck mount for secure hold

• High-quality steel construction for maximum stability

• Ideal for cutting and separating work in CNC machines

• Flexible clamping range of 2 - 25 mm

• Dimensional tolerances possible

Scope of delivery:

• HSK 63 F Collet Chuck with Saw Blade 105 x 2.8 x 22

Note on used tool holders:

• Tool holders may show signs of wear, discoloration, engravings or slight traces of corrosion. However, these do not affect the function.

• All tools are treated with corrosion protection agent, which may be visible in the photos as brownish color.

• If tools or holders are damaged or only partially usable, this will be expressly mentioned.

• Tools are used and often not resharpened. Resharpening is the responsibility of the buyer.

• It is recommended to remove the corrosion protection agent before use.

If you need further information or have any questions, please do not hesitate to contact us!
