ATEMAG HOMAG Saw Unit VARIO VISO FUNCTION LINE Drilling and Milling Unit tiltable (used) Item No. 55057

Description

ATEMAG VARIO VISO FUNCTION LINE Drilling and Milling Unit, tiltable (used) HOMAG Adaptation

ATEMAG VARIO VISO FUNCTION LINE Drilling and Milling Unit, tiltable (used) HOMAG Adaptation

Professional machining unit from ATEMAG's Function Line with HOMAG WEEKE adaptation, integrated digital angle display, fine gear for precise angle adjustment, and robust construction. The unit allows for quick angle changes with fixed points at 0°, 45°, and 90°. ATEMAG's integrated digital display ensures exact repeatability in CNC operation.

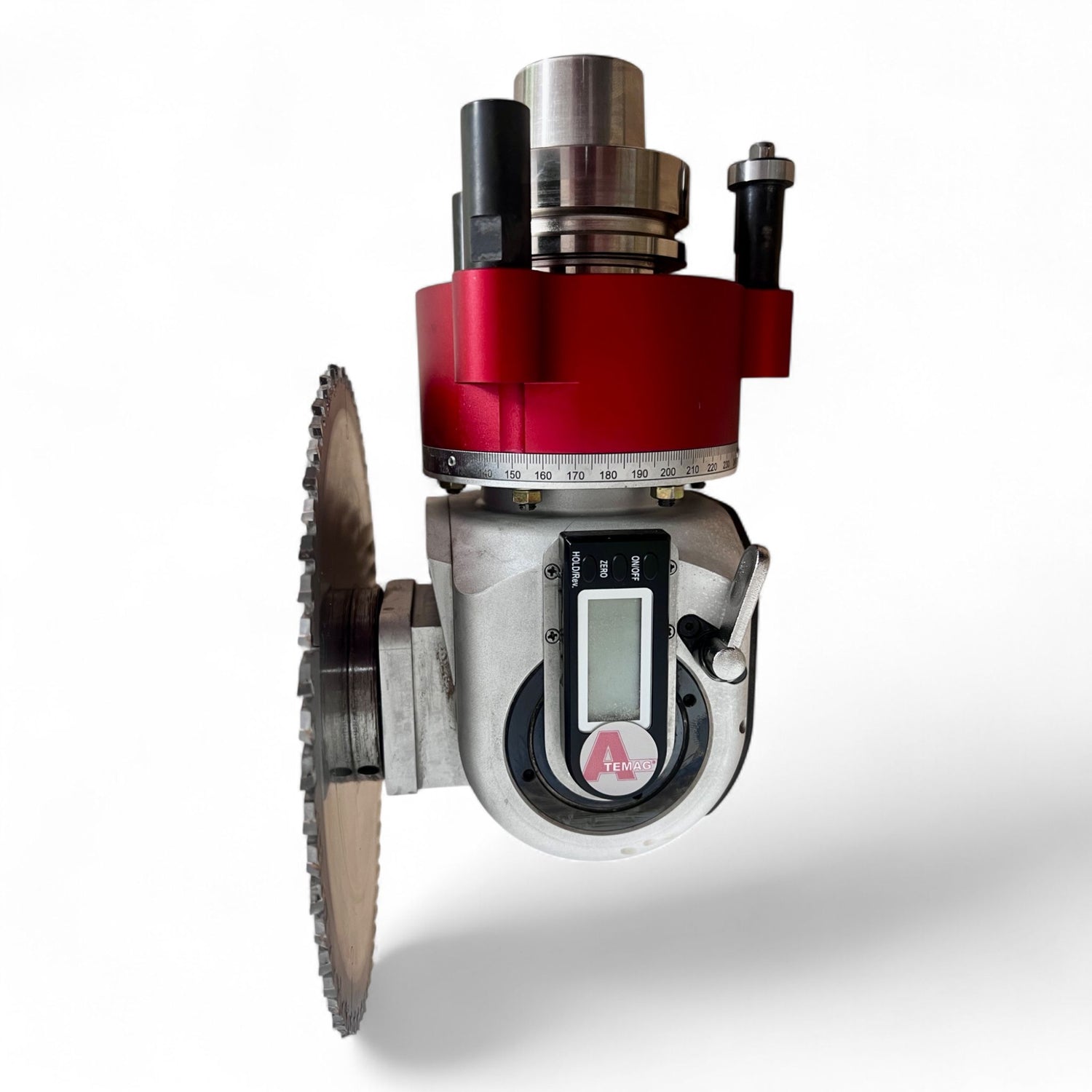

The tool unit is suitable for operations such as drilling, milling, sanding, and light sawing. Thanks to the saw flange (visible in the photos with a mounted carbide saw blade), it is particularly suitable for miter cuts and groove processing at varying angles. The solid construction with a circumferential degree scale and mechanical fine adjustment guarantees exact and repeatable results.

Typical applications:

Typical applications:

Miter cuts (e.g., Clamex connections in interior finishing)

Hardware drilling (e.g., 93°/97° Anuba hinges for doors)

Sanding of edges and profiles

CNC machining in furniture and exhibition stand construction

Technical Data

• Item number: 84669400
• Shipping weight: approx. 8 kg
• Max. input speed: 15,000 min⁻¹
• Max. output speed: 15,000 min⁻¹
• Gear ratio: 1:1
• Max. torque: 20 Nm
• Operating temperature: max. 85 °C
• Machining angle: 0°–100°
• Angle display: digital
• Torque arm: 360° rotatable
• Tool outputs: 1 (variable)
• Lubrication: Permanent lubrication with lifetime grease
• Tool holder: Saw flange (Type K1/K2)
• Machine mounting: CNC pin holder (3-point)
• Highlights:
• Highlights:
• Digital angle display with fine adjustment
• Ideal for angle cuts and miter joints

Condition

Manufacturer

Manufacturer

Item number 55057

Item number

Scope of Delivery

Machining unit VARIO VISO FUNCTION LINE

Integrated digital angle display

Angle scale with 0–360° marking

Mounted carbide saw blade (Type: Guhdo 250x3.2/2.2x30 Z=60)

CE-marked housing with original label

3-point pin holder for connection to CNC

Tool flange in red anodized finish
