Übertragen Sie den Typ vollständig, Zeichen für Zeichen. Motoren, die sich nur in den letzten Stellen unterscheiden, sehen von außen gleich aus, haben aber einen anderen Geber – und laufen an Ihrem Regler nicht.
Notieren Sie auch die Achse. Geber und Bremse unterscheiden sich je nach Einbauort; der Motor der Z-Achse hat in der Regel eine Haltebremse.
REXROTH INDRAMAT Rexroth Permanent Magnet Motor - Indramat MKD071B-...

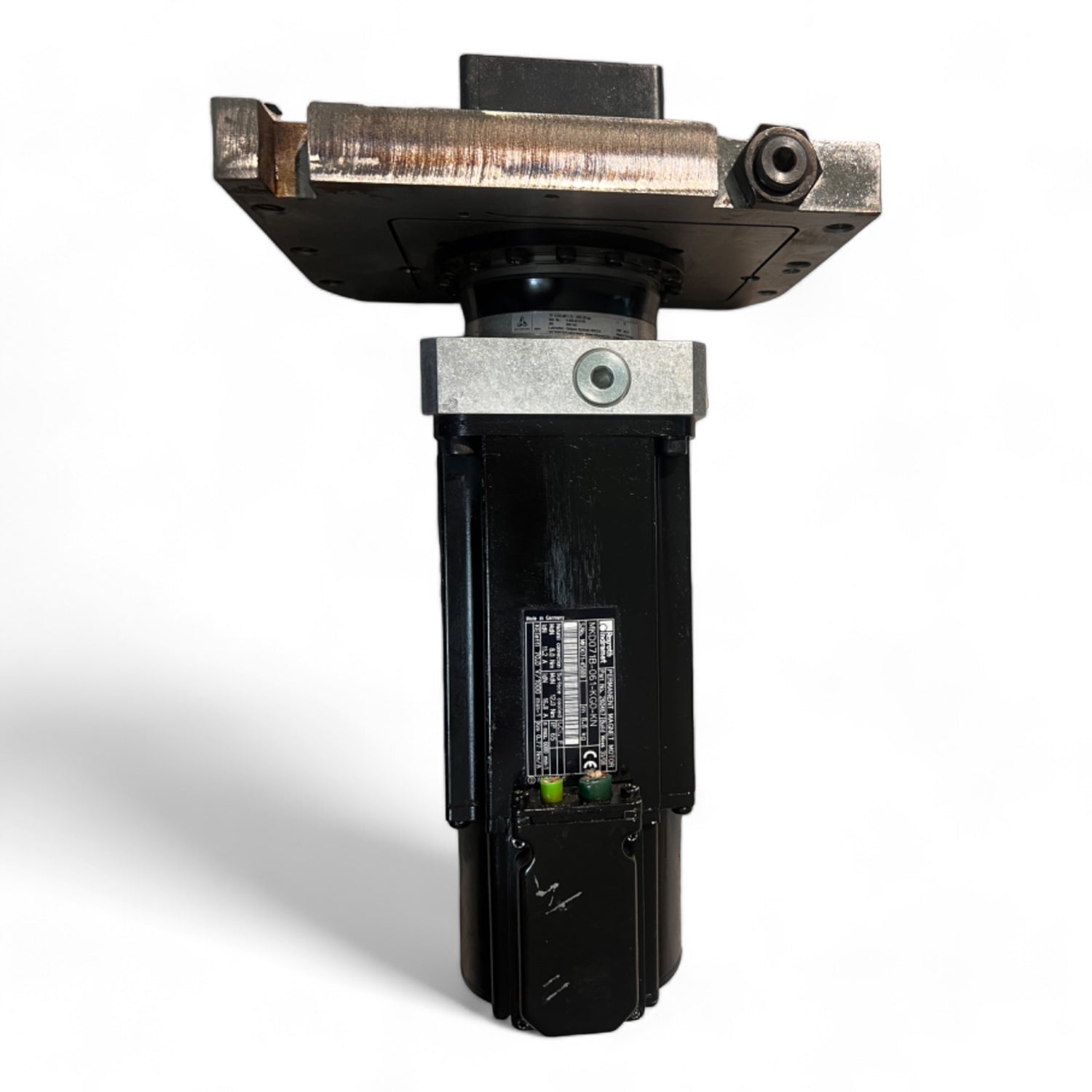

Rexroth Indramat MKD071B-061-KG0-KN Permanent-Magnet Servomotor – Serial No. 7260413230386
Digital AC synchronous servomotor of the Bosch Rexroth MKD series with holding brake, used for X/Y/Z axis drives on HOMAG BOF machining centers. Used and tested.
| Manufacturer | Bosch Rexroth / Indramat |
| Model | MKD071B-061-KG0-KN (also listed as MKD071B-061-KP1-KN) |
| Part number | R911261989 |
| Serial number | 7260413230386 |
| Origin | Made in Germany |
| Cooling | Natural convection, surface cooled |
| Rated torque / max. torque | 8.0 Nm / 12.0 Nm |
| Rated current / max. current | 11.2 A / 16.8 A |
| Rated speed | 6000 min⁻¹ |
| Torque constant (Km) | 0.77 Nm/A |
| Voltage (eff) | 600 V |
| KE (eff) | 70.0 V/1000 min⁻¹ |
| Brake | 5.0 Nm, 24 V DC ±10 %, 0.56 A |
| Thermal class | F |
| Protection class | IP65 |
| Weight | 8.8 kg |
| Condition | Used · 2 – Good |
Product description
The Rexroth Indramat MKD071B-061-KG0-KN is a high-performance digital AC synchronous servomotor from the well-known Bosch Rexroth MKD series, valued for efficiency, reliability and low maintenance.
With digital control and resolver feedback it provides exact positioning and repeatability. The bearings are lubricated for life, and the fully sealed housing protects against dust and moisture. The motor integrates easily into existing systems.
Compatibility & applications
Woodworking: X, Y and Z axis drives on HOMAG BOF machining centers (BAZ). Also used in food production, printing, packaging and general automation. A matching Alpha gearbox is available.
Scope of delivery
1 × Rexroth Indramat permanent-magnet servomotor, as shown in the photos.
Shipping to the USA & worldwide
In stock in Germany and shipped via FedEx or UPS, usually on the day of your order. Transit to the US typically takes 2–5 business days with full tracking. Import duties and fees follow the US regulations in force on the import date and are settled by the importer. More background on availability and pricing of legacy CNC electronics: read our guide for US customers.
-
