NUM 1060 I/O Board for IMA 810 V – 0224204392E

Name: NUM 1060 I/O Board for IMA 810 V – 0224204392E
Brand: NUM
SKU: 0224204392E
Price: 589.00 EUR
Availability: InStock

€589,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

NUM I/O board Used IMA 810 V

NUM 1060 I/O Board – 0224204392E

Original NUM 1060 input/output board from an IMA 810 V for processing input and output signals – removed from a running system and tested.

0224204392E

Part number

MC68020

Processor

NUM 1060

Control

IMA 810 V

Removed from

approx. 1998

Year

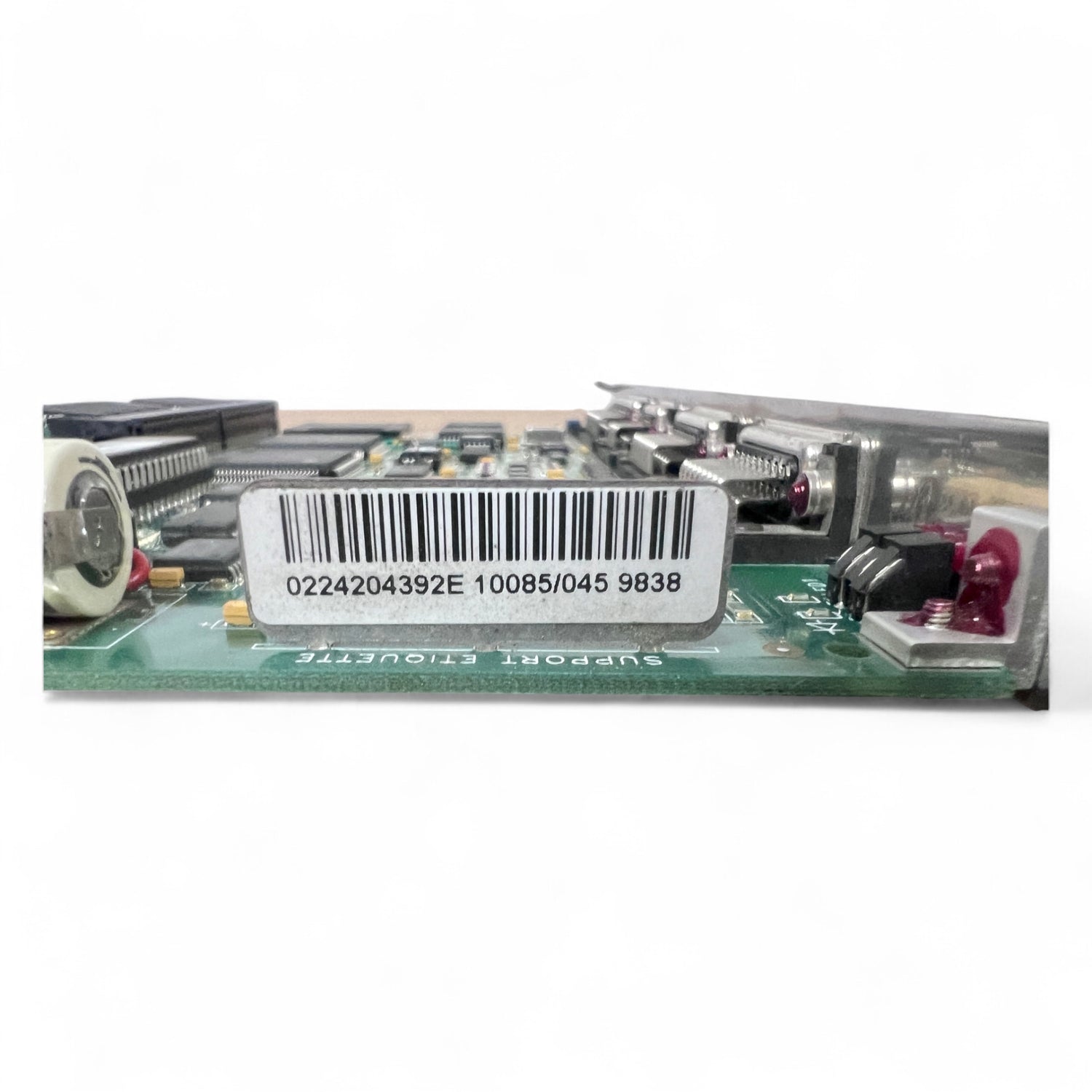

Before you order: Please compare the part number 0224204392E, the ID no. 10085/045 9838 and the marking H45 000 E1 with the board in your control. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Manufacturer	NUM
Type	NUM 1060 input/output board
Part number	0224204392E
Further ID / order no.	10085/045 9838

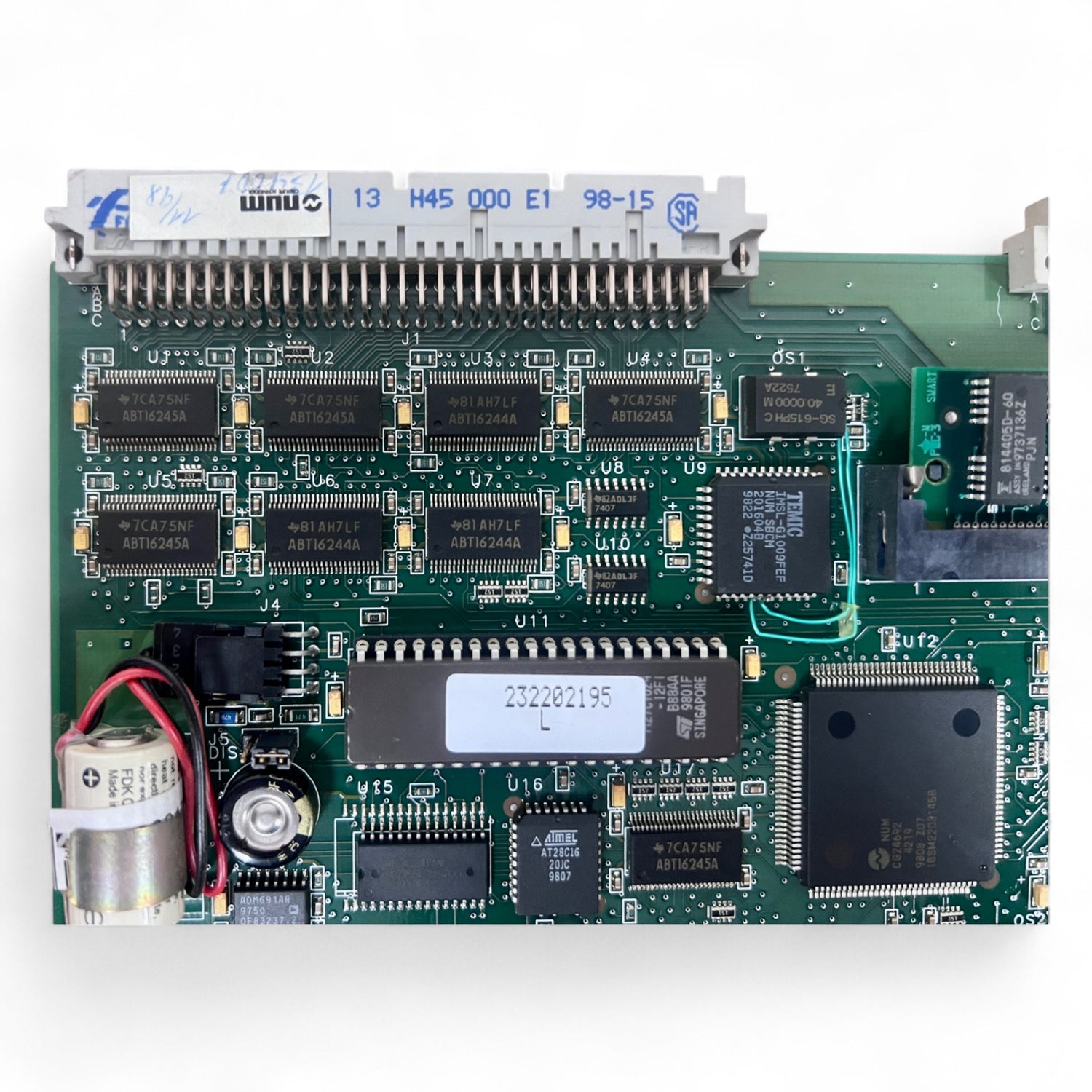

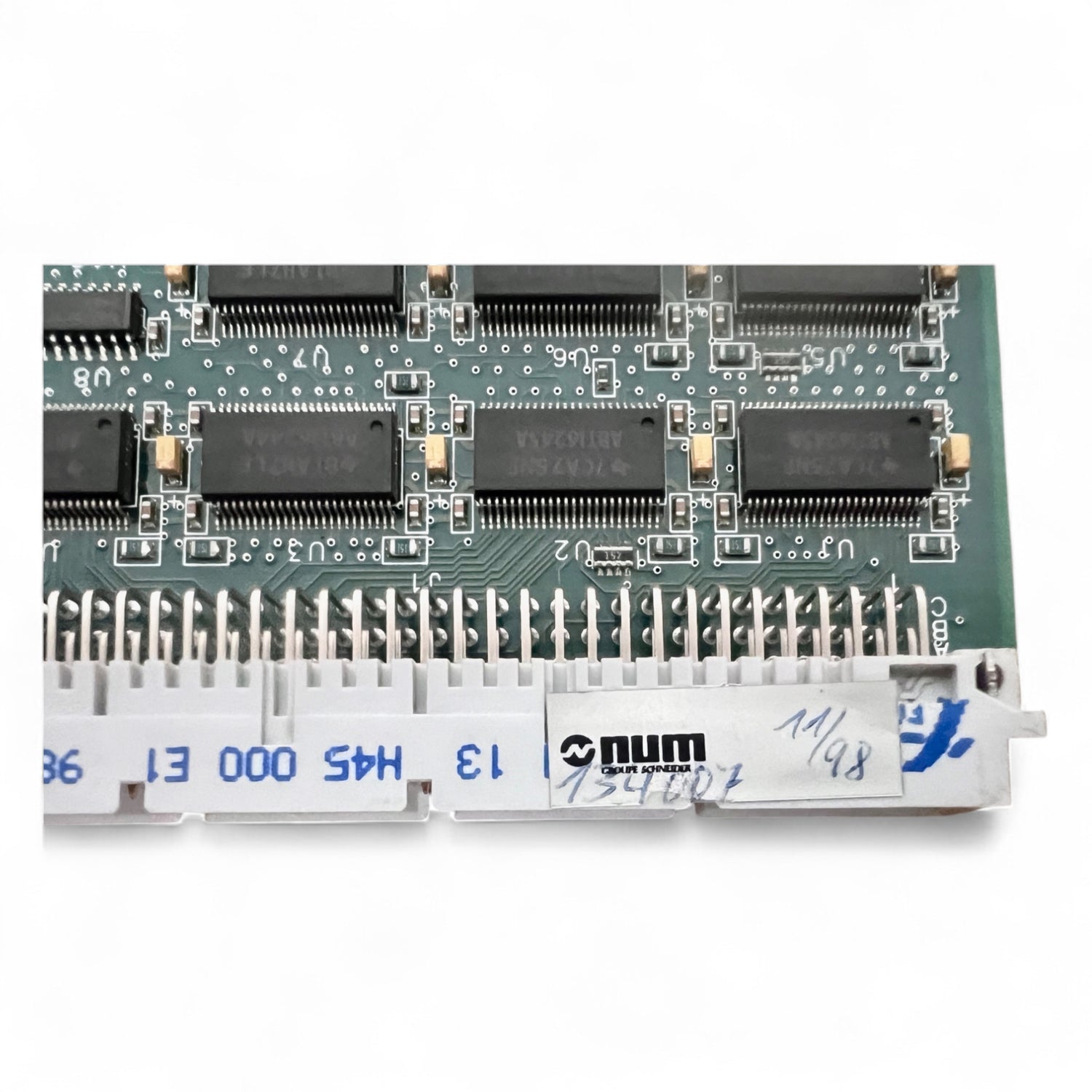

Manufacturer marking	H45 000 E1
Year of manufacture	approx. 1998

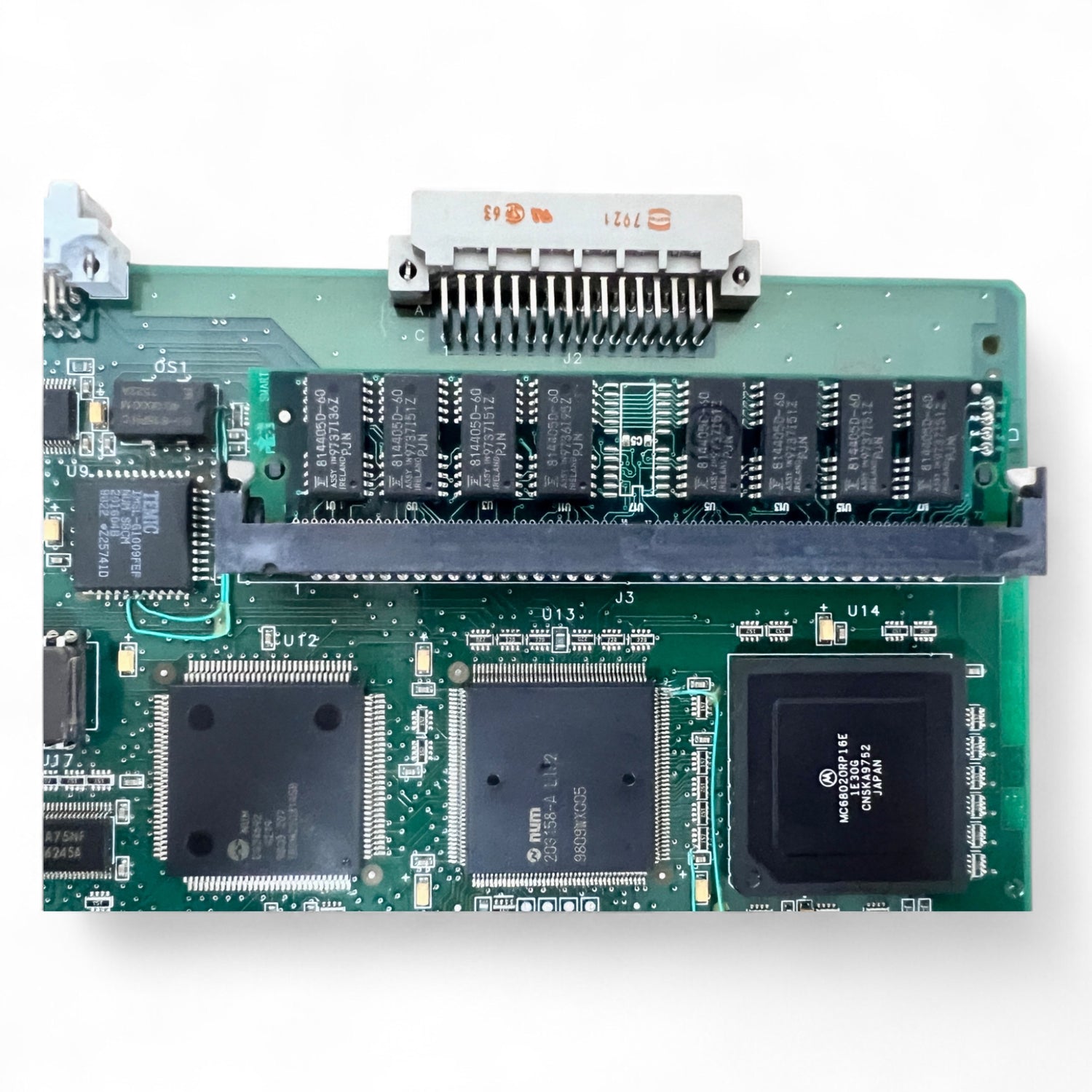

Processor	Motorola MC68020RP16E
Memory	Siemens B81400A modules

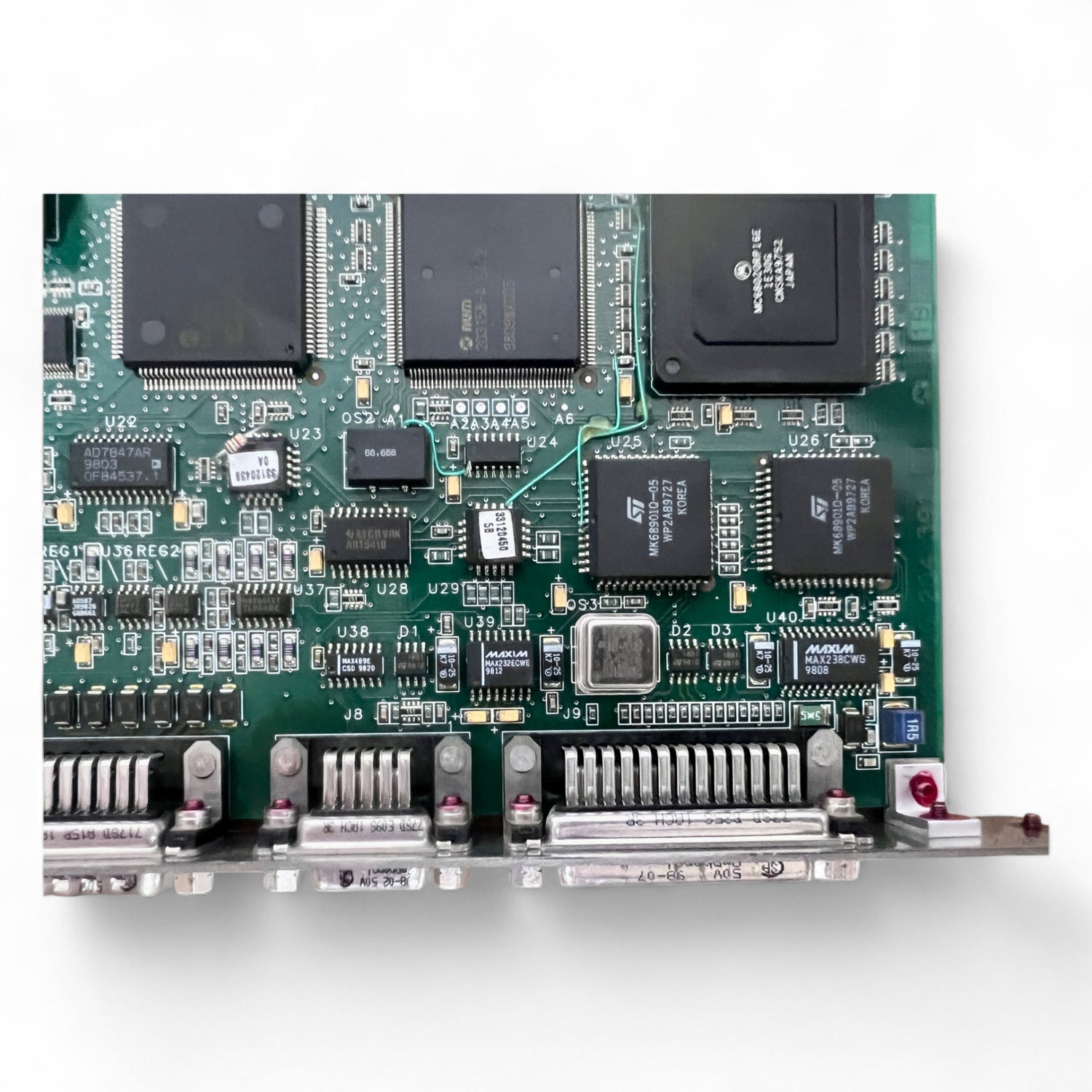

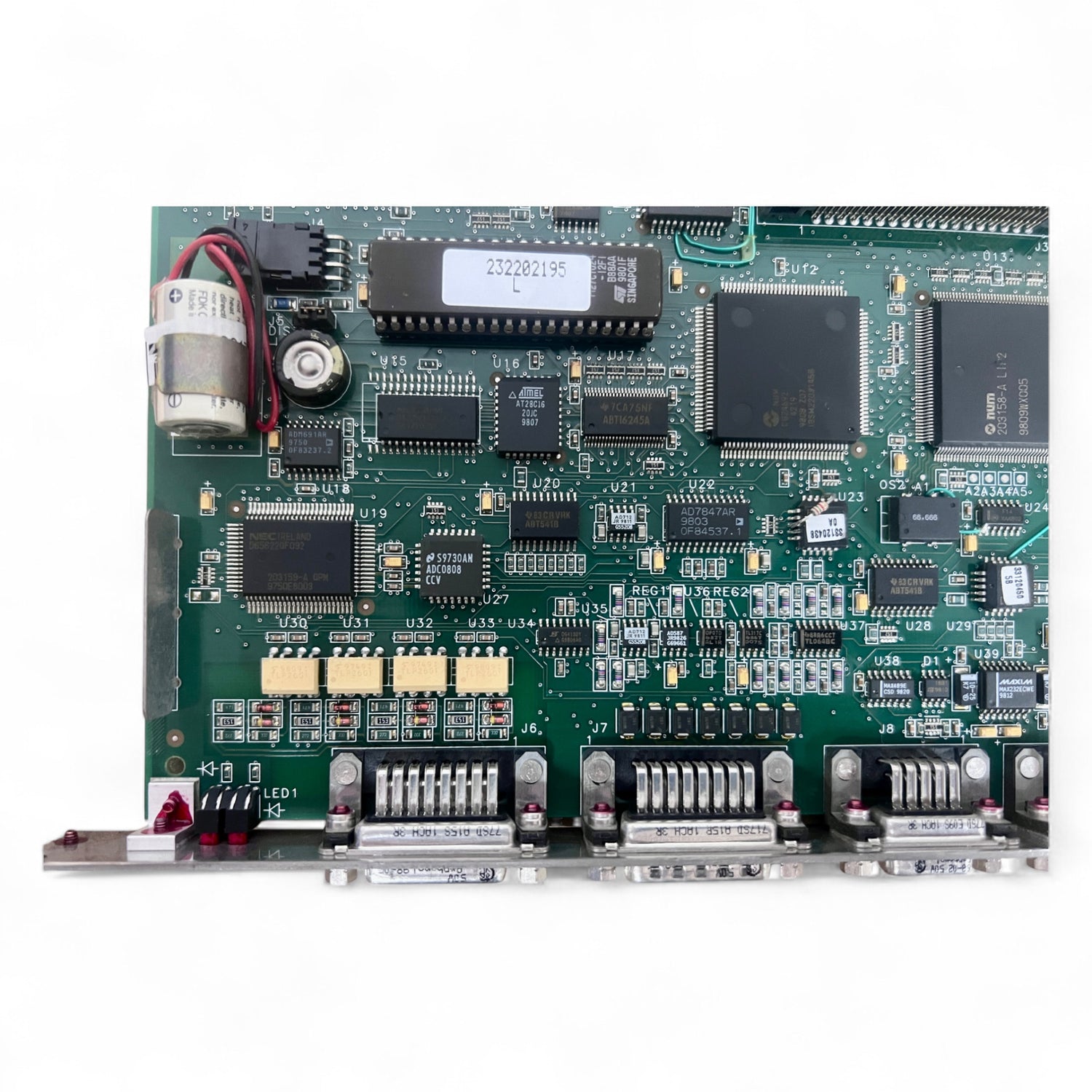

Interfaces	Sub-D25, Sub-D9, several RS232 ports
Dimensions	approx. 260 × 230 mm
Weight	approx. 0.8–1.0 kg
Condition	Used · 2 – Good

Product description

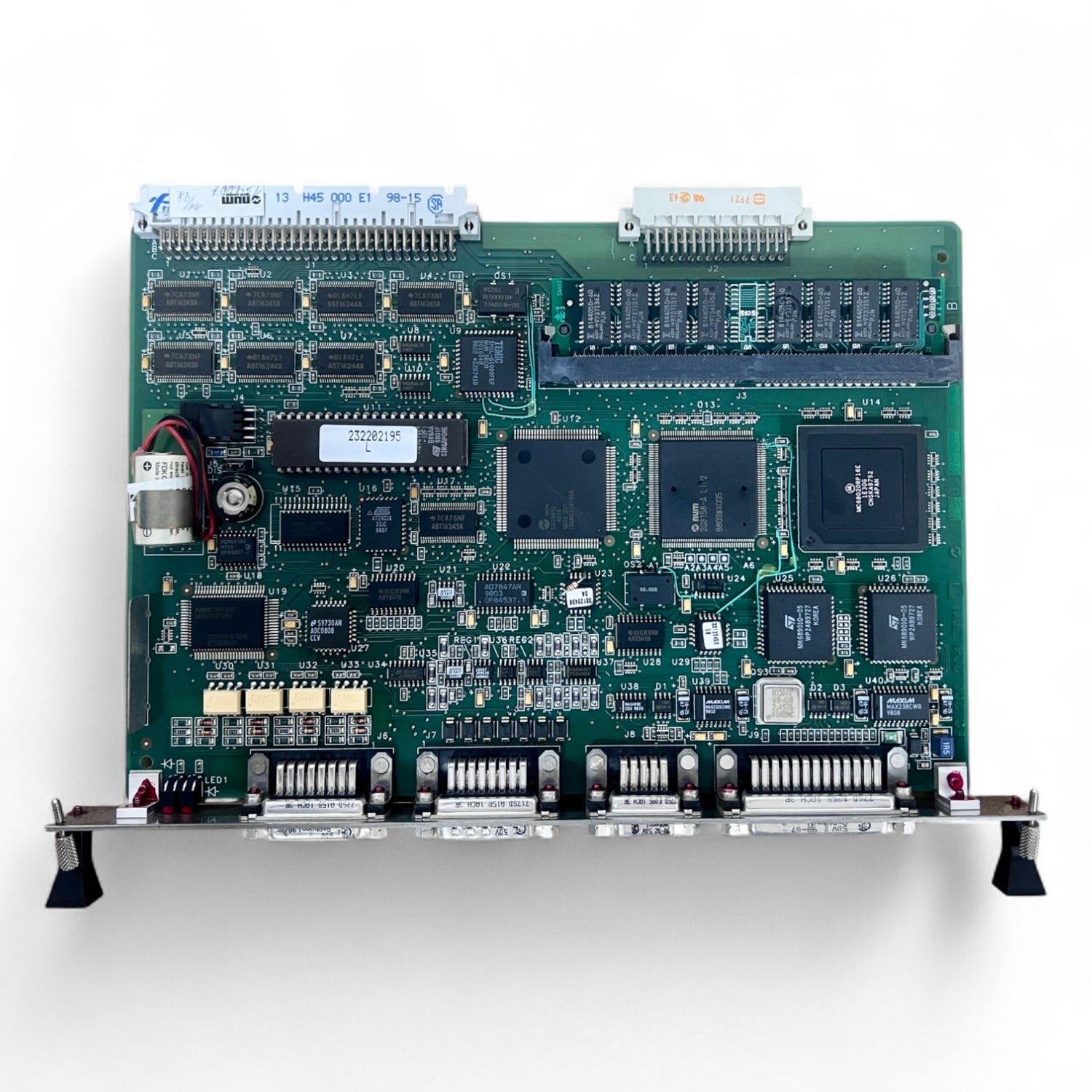

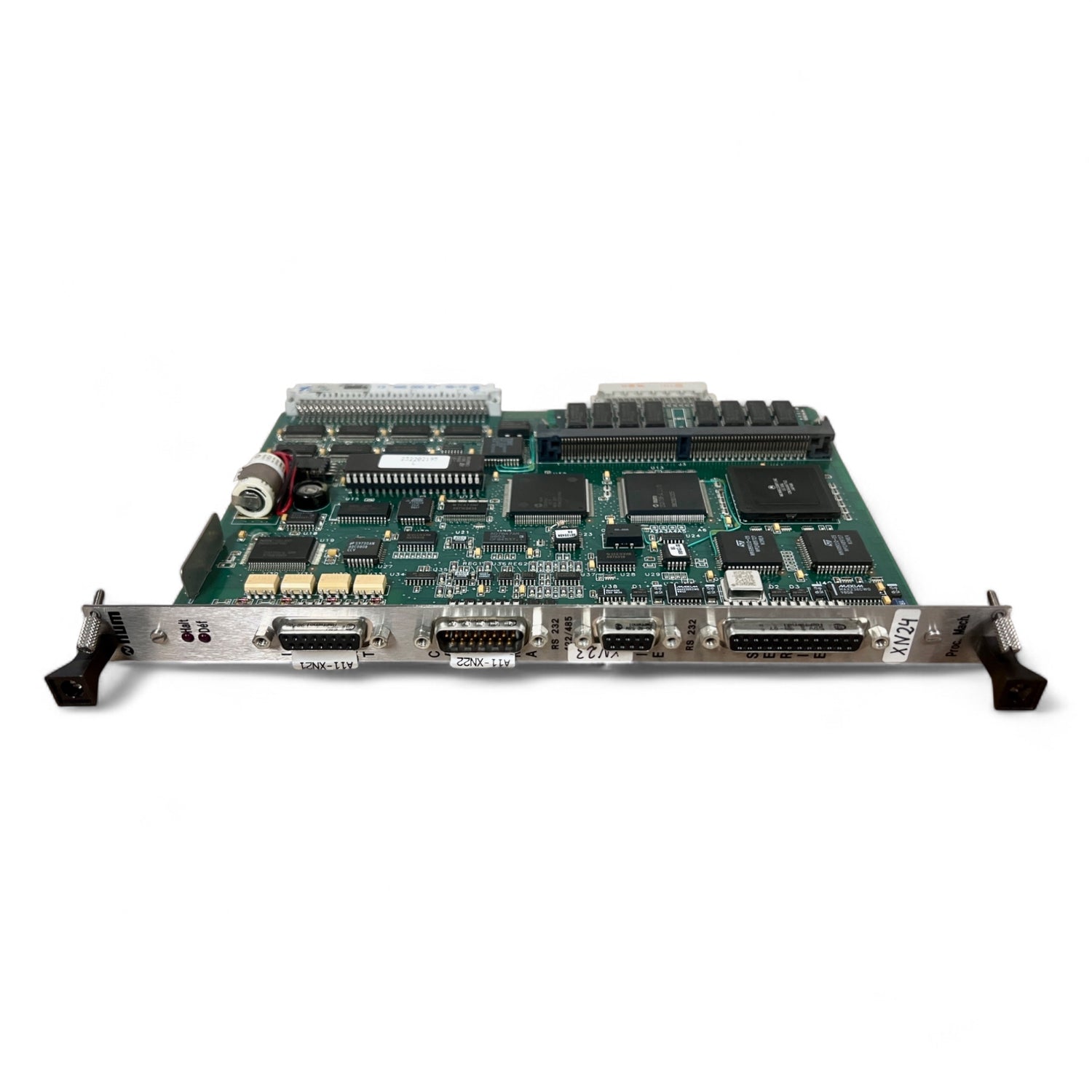

The NUM 1060 input/output board (I/O board, interface card) is an original replacement part for NUM 1060 CNC controls. This assembly comes from an IMA 810 V and handles the control and processing of input and output signals.

It is equipped with Siemens memory devices, various controller and interface chips and a Motorola processor for signal processing. The used original part was removed from a running system, tested and is ready to install again – fully functional, visually good condition with light signs of use as shown in the photos.

Compatibility & applications

For NUM 1060 CNC controls: reliable communication between control and machine by processing signals for axes, drives and peripherals. Especially suited for IMA machines such as the IMA 810 V and comparable systems.

NUM 1060IMA 810 V

Scope of delivery

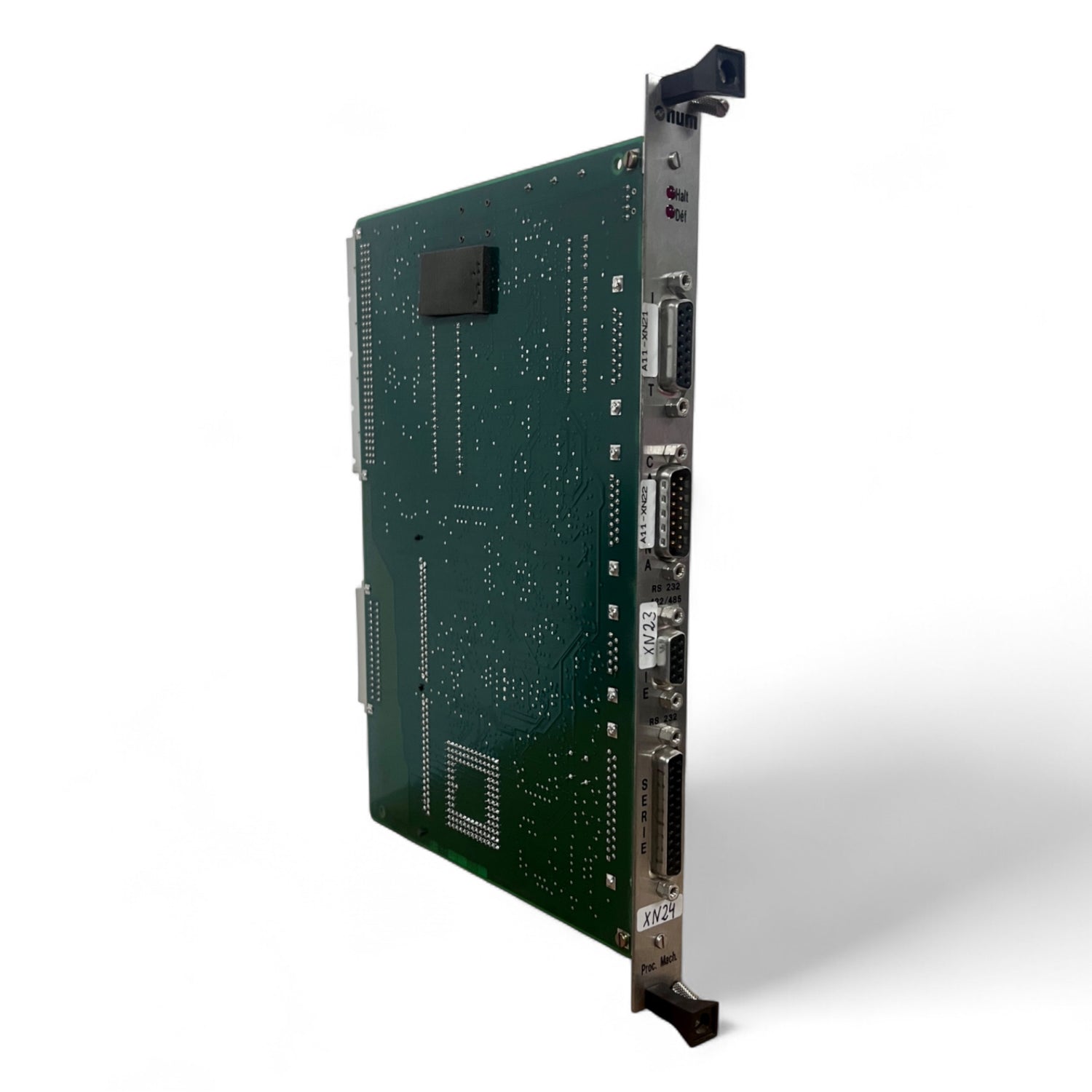

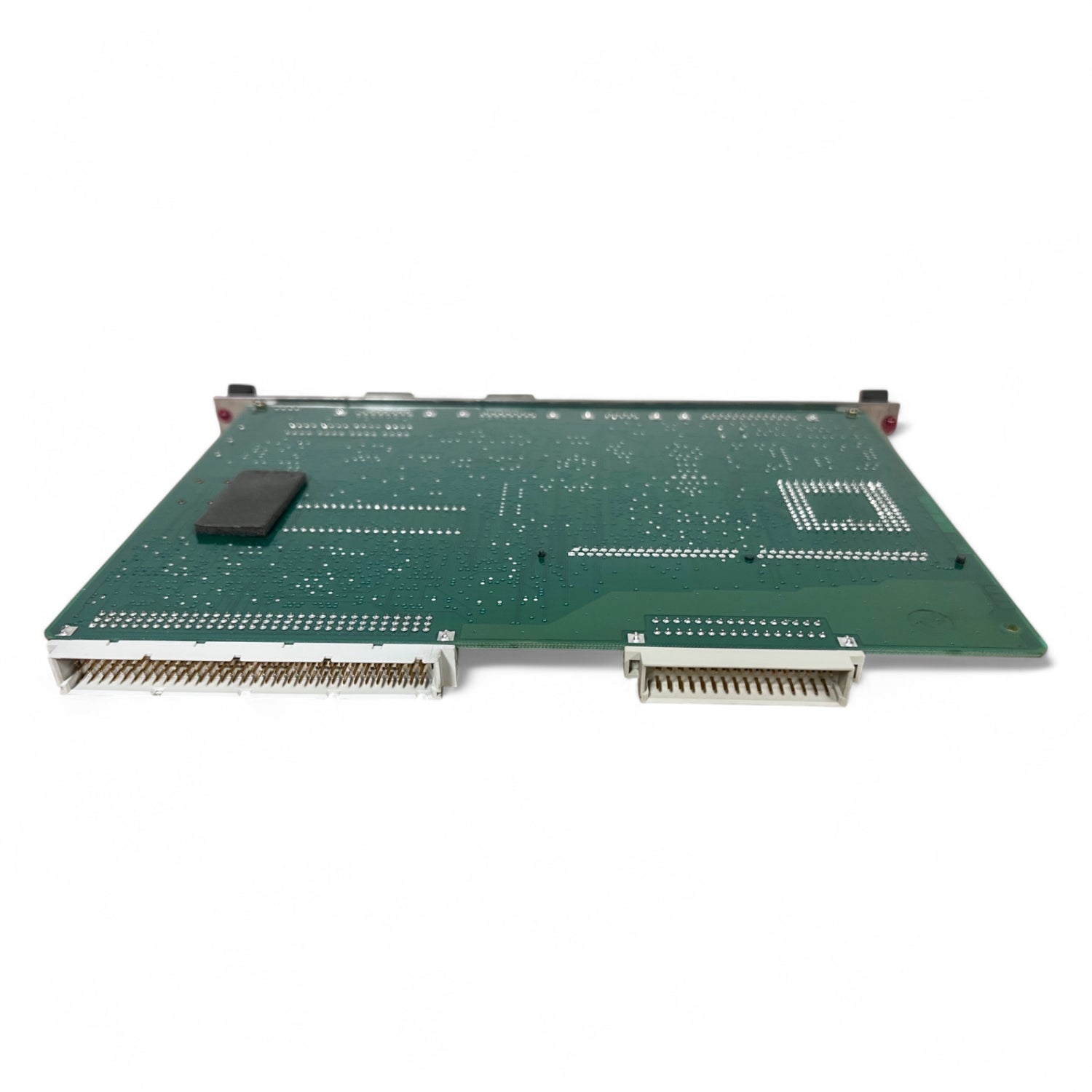

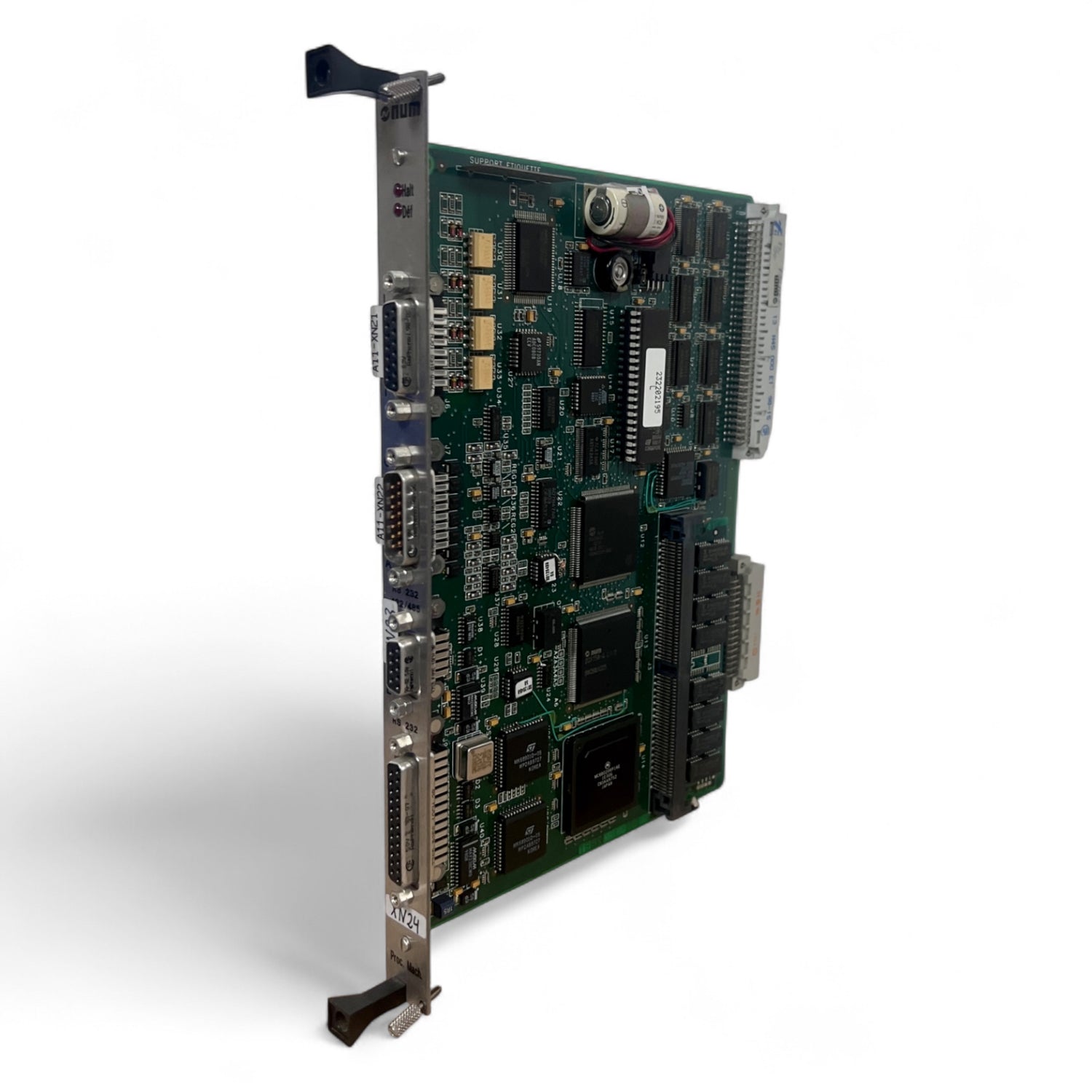

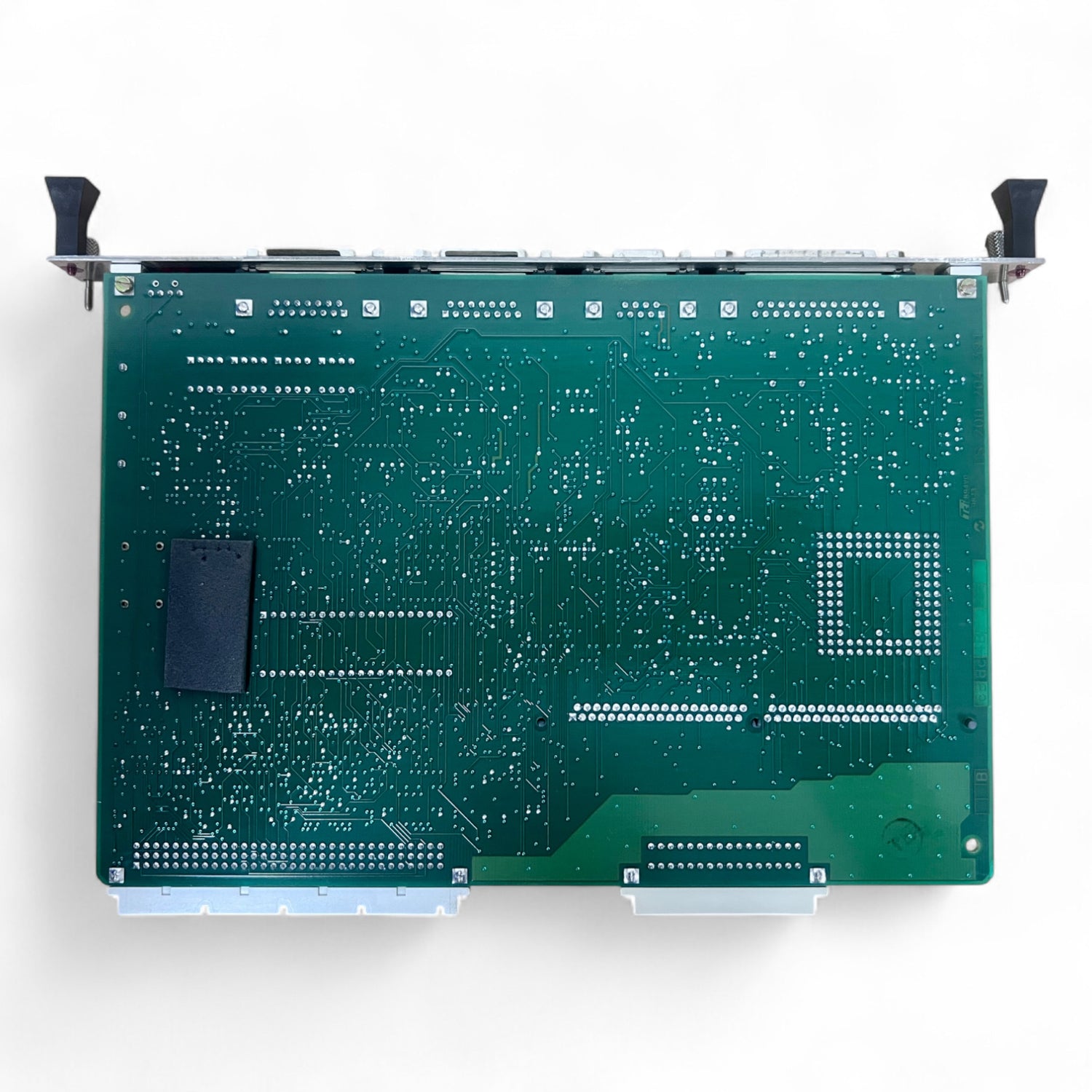

1 × NUM 1060 I/O board 0224204392E, as shown in the photos.
