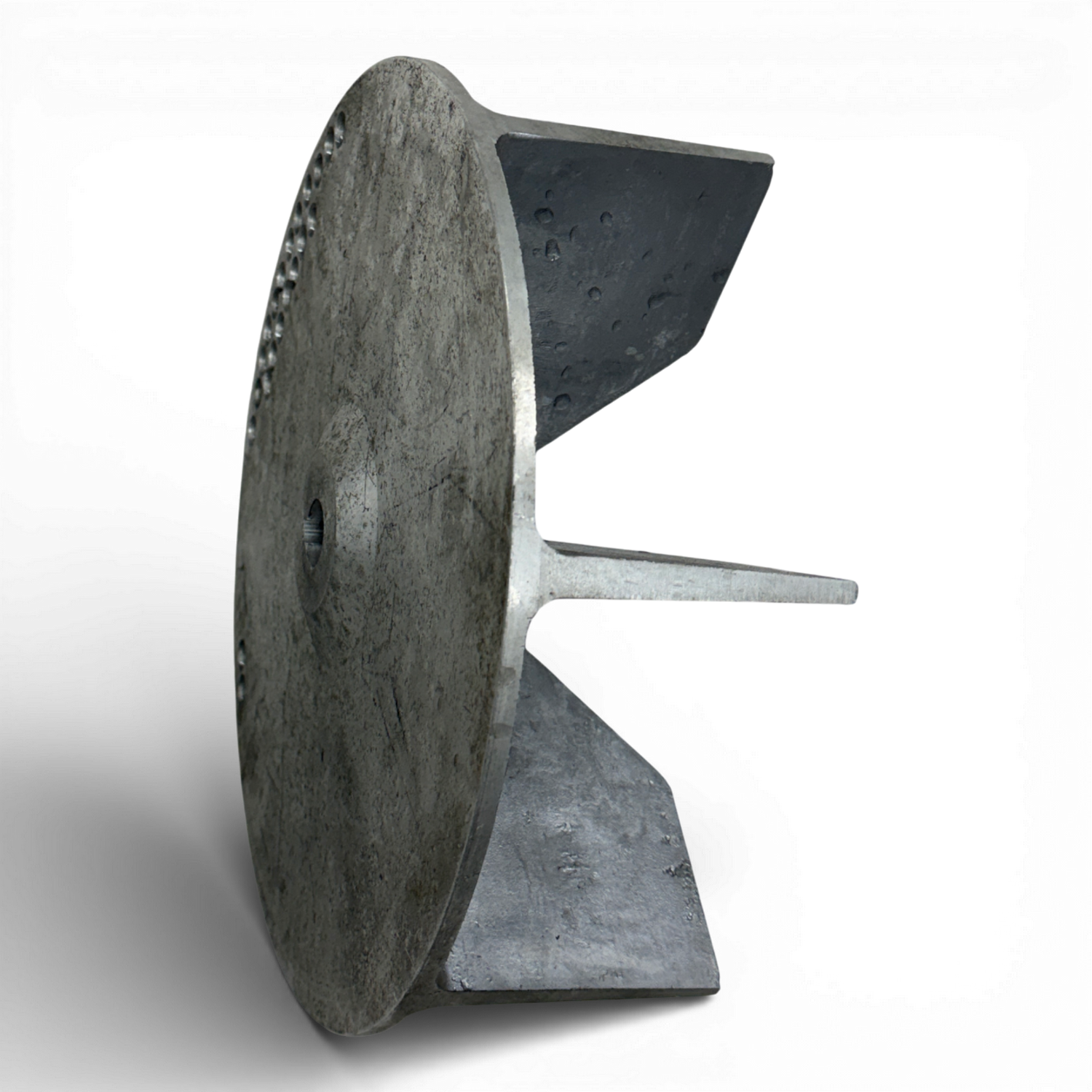

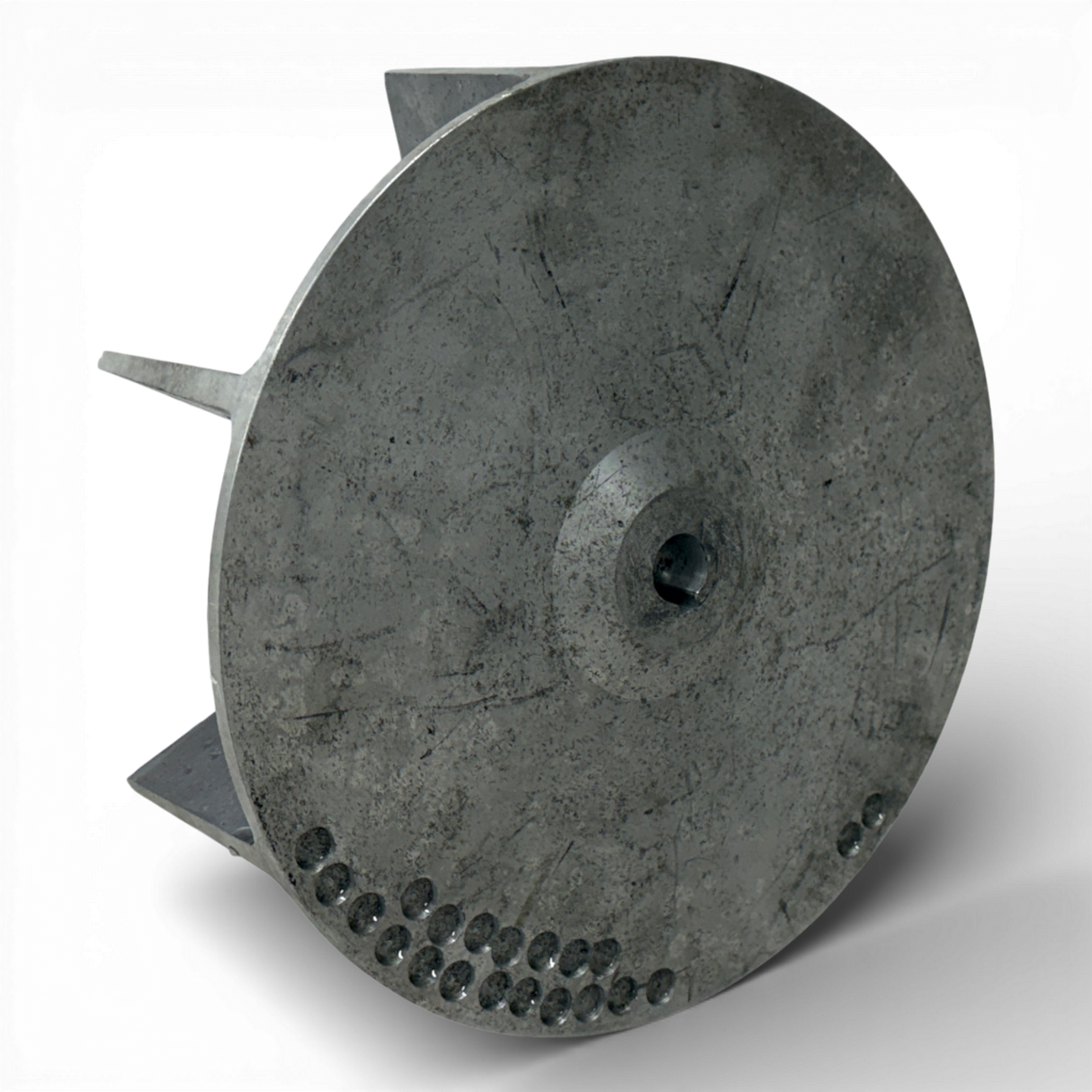

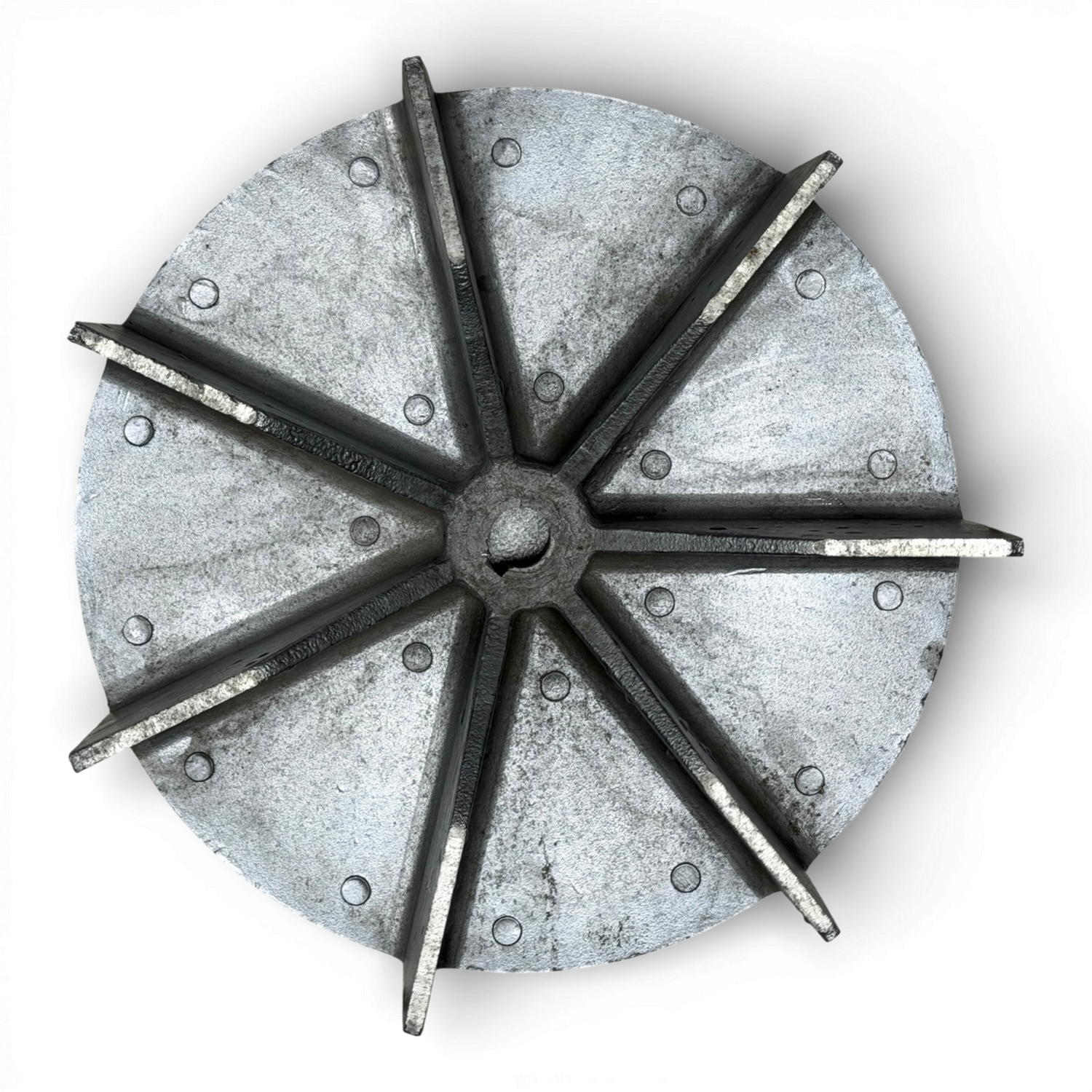

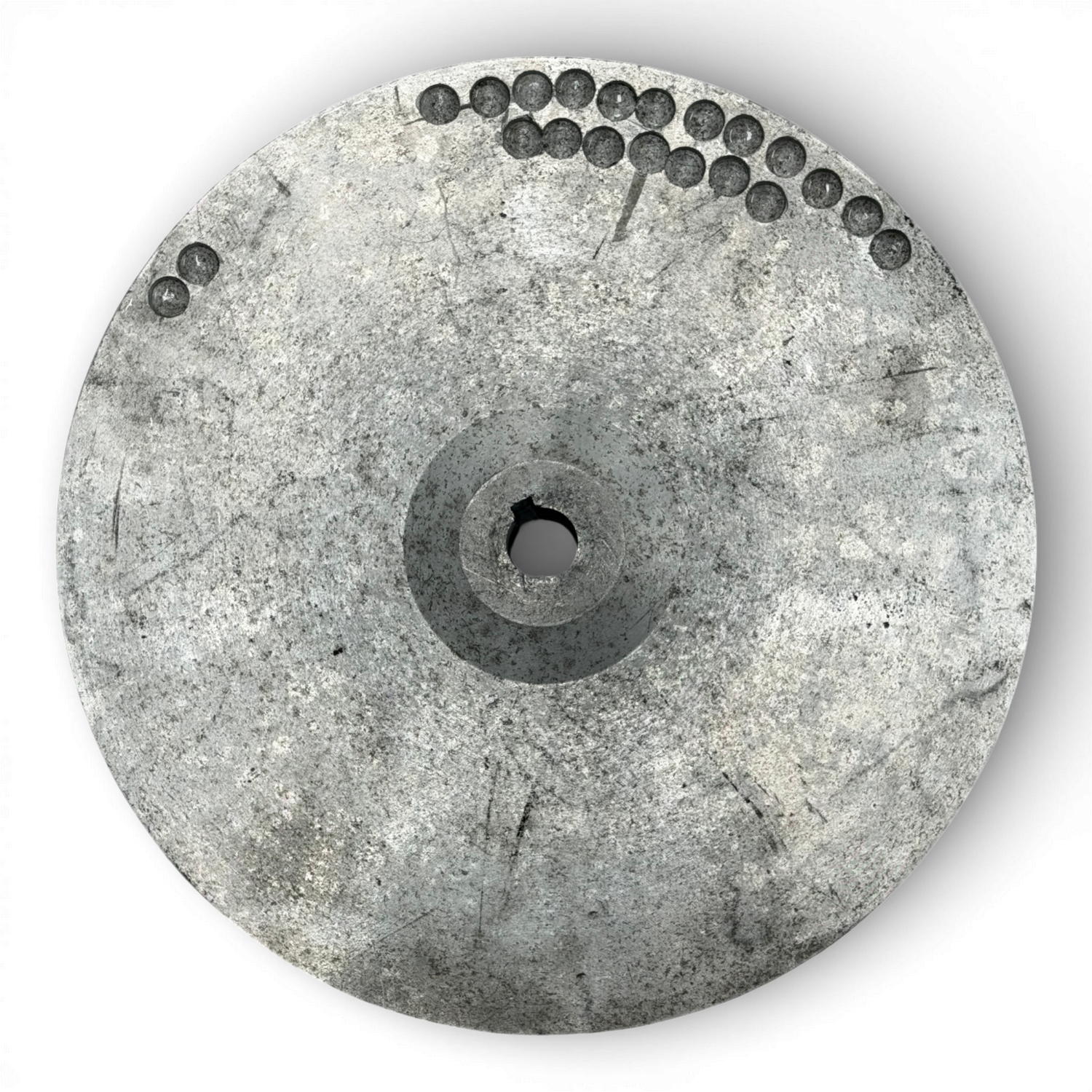

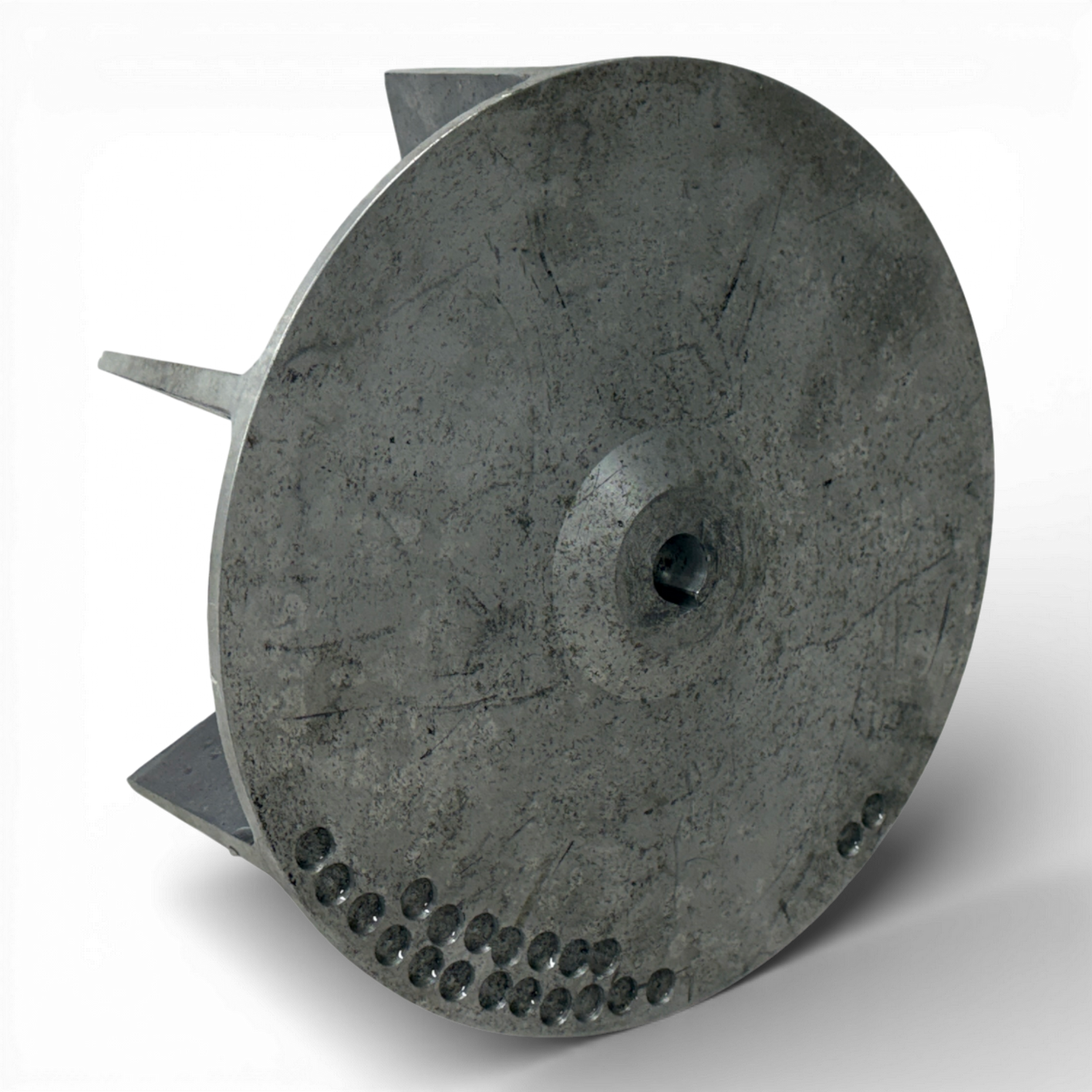

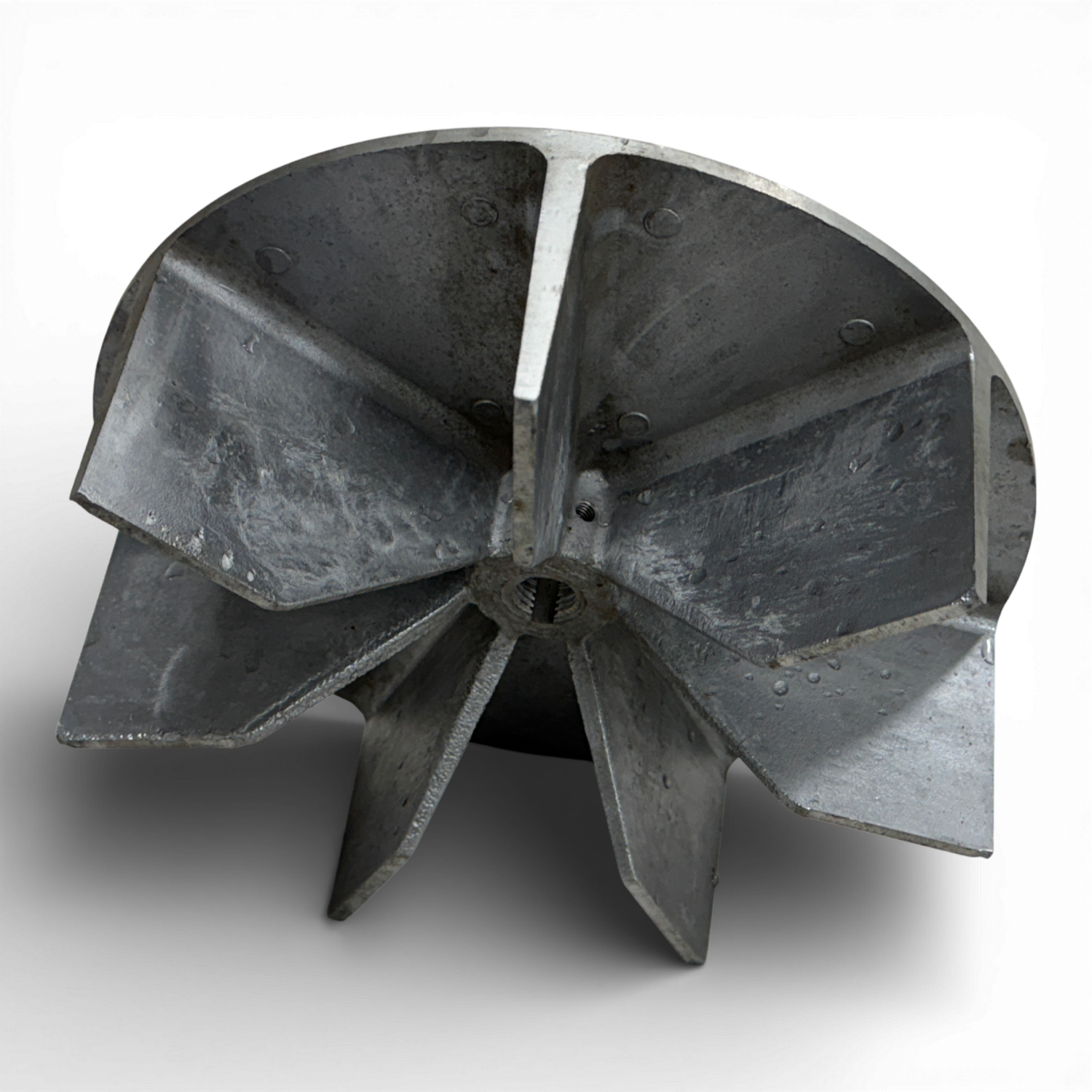

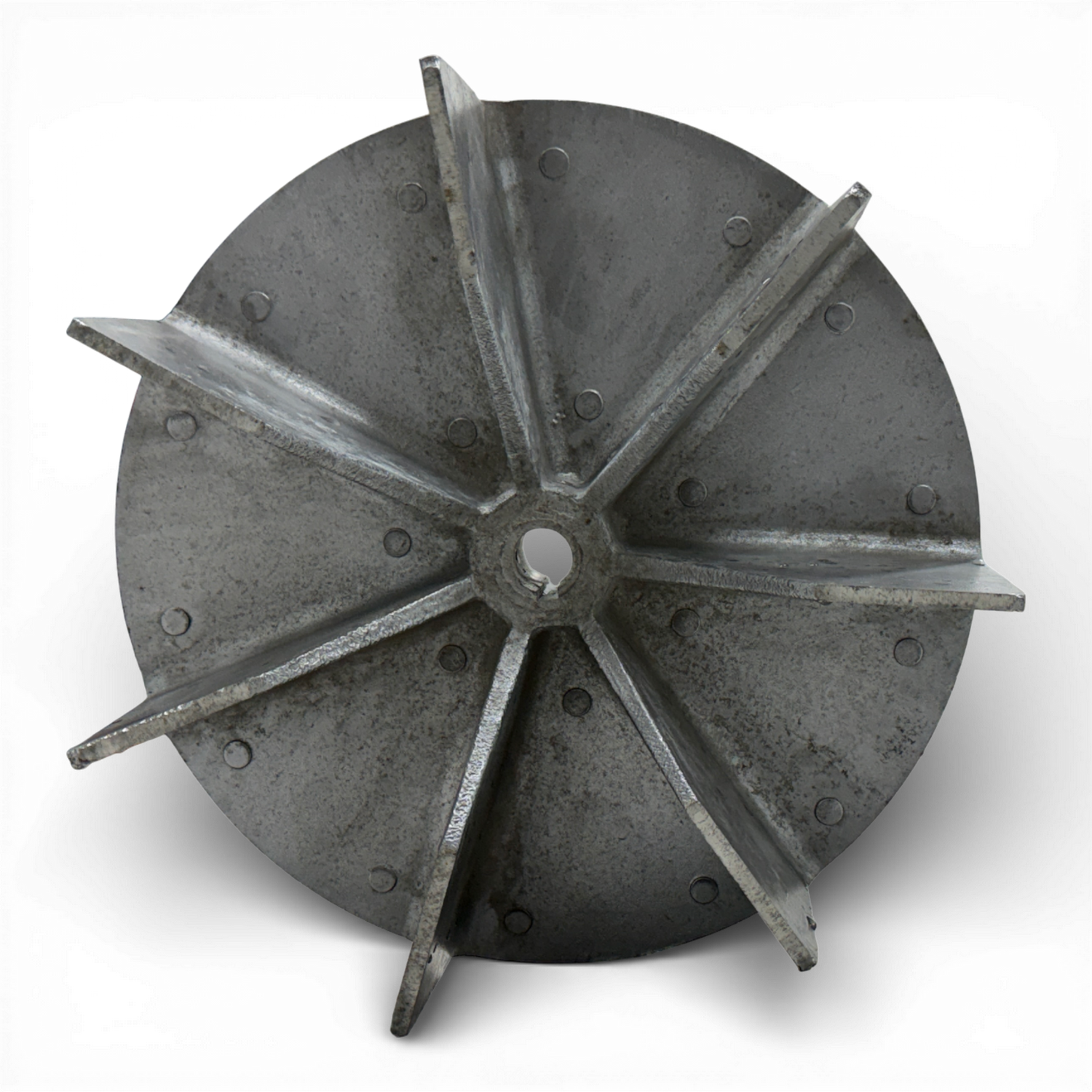

Impeller Aluminum Ø 300 mm Extraction Fan Extractor Fan Impeller Transport Fan Item No. 300100 (aluminum impeller)

Aluminum Impeller Ø 300 mm Exhaust Fan Suction Fan Impeller Transport Fan Art. No. 300100 (aluminum impeller)

Art. No.: 300100

Manufacturer: unknown

Other ID Order No.: not known

Serial production data: no information

Technical Description

This aluminum impeller is intended for use in exhaust fans, transport fans, and industrial extraction systems. It is suitable as a spare part for defective equipment as well as for new construction or repair of fans and extraction units in industrial and private environments.

The impeller is finely balanced, enabling quiet, low-vibration operation. This protects bearings, motor, and housing, increasing the lifespan of the entire unit. The sturdy aluminum construction offers high dimensional stability while maintaining low weight. In addition to the keyway, the bore has an integrated thread, which allows for secure assembly and easier disassembly. Suitable for air conveyance, chip extraction, and material transport in extraction and ventilation systems (impeller, fan wheel).

Technical Data

Material: Aluminum

Outer diameter: approx. 300 mm

Overall height: approx. 100 mm

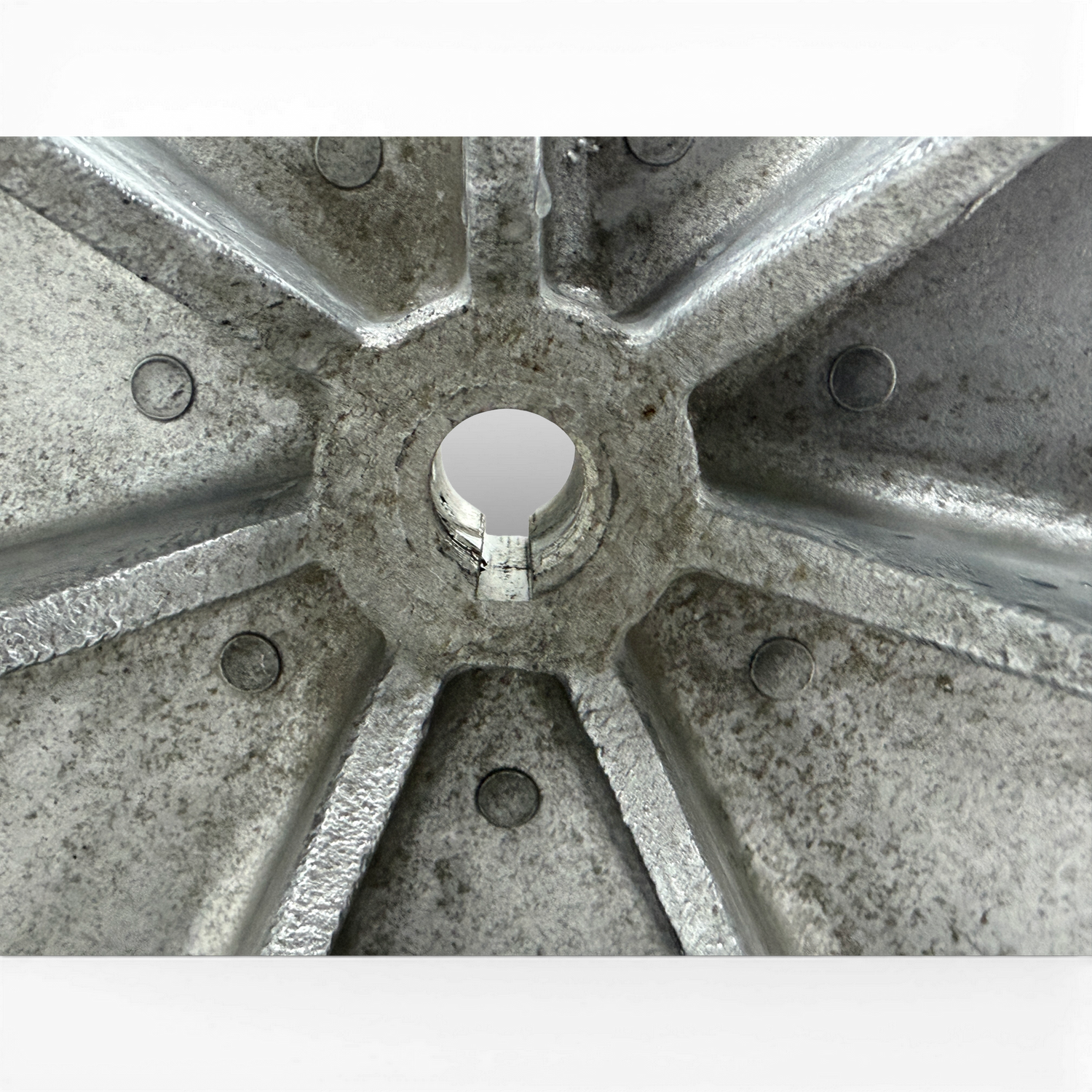

Bore diameter: approx. 20.790 mm

Keyway: approx. 6.88 × 2.96 mm

Mounting flange depth: approx. 48.4 mm

Additional thread in the bore: present

Note: All dimensions were measured manually. Measurement errors are possible and do not constitute a defect.

Weight

approx. 2.9 kg

Dimensions

approx. Ø 300 × H 100 mm

Condition

Unused

With minor storage marks due to warehousing, therefore sold as a used part.

Finely balanced

No identifiable cracks or structural damage
